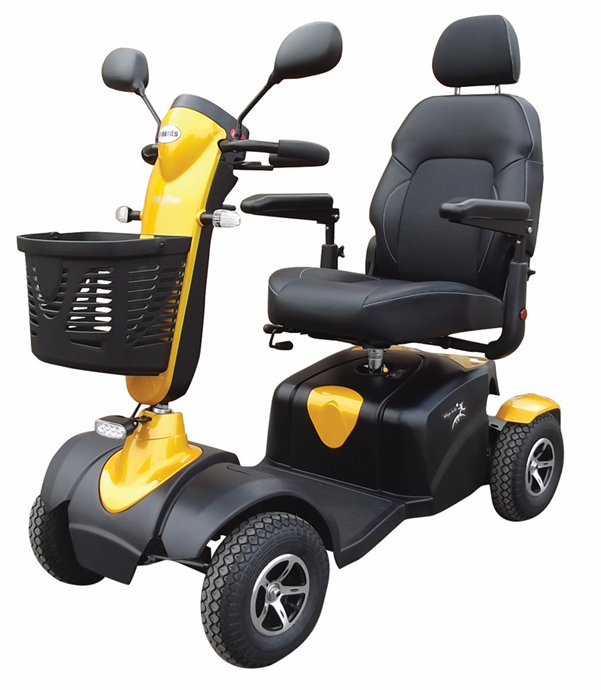

745 Plus

Description

This new design offers generous foot space & leg room, also with large battery capacity .
Stylish eye catching design with attractive modern colour range .
Loop handlebars offer comfortable finger or thumb throttle operation .
Adjustable high back contoured seat with simple operation of slide and swivel mechanisms to allow maximum user comfort .
Infinite adjustment of steering tiller allowing everyone to easily find a comfortable position .
Adjustable suspension to give maximum comfort .
4 pole motor delivering more power .
High mount charger socket provides easy access when charging .
Adjustable power saving LED headlight, indicators , rear tail lights and reverse warning .
Built in speed reduction switch which is activated when turning offering exceptional safety .
Available in blue, pearl gold and silver .

This new design offers generous foot space & leg room, also with large battery capacity .
Stylish eye catching design with attractive modern colour range .
Loop handlebars offer comfortable finger or thumb throttle operation .
Adjustable high back contoured seat with simple operation of slide and swivel mechanisms to allow maximum user comfort .
Infinite adjustment of steering tiller allowing everyone to easily find a comfortable position .
Adjustable suspension to give maximum comfort .
4 pole motor delivering more power .
High mount charger socket provides easy access when charging .
Adjustable power saving LED headlight, indicators , rear tail lights and reverse warning .
Built in speed reduction switch which is activated when turning offering exceptional safety .
Available in blue, pearl gold and silver .

Overall Length	1320 mm
Overall Width	610 mm
Overall Height	1020 mm
Wheelbase Length	980 mm
Seat Width	460 mm
Seat Depth	400 mm
Min Floor To Seat Height	440 mm
Max Floor To Seat Height	490 mm
Min Seat Height from Deck	610 mm
Max Seat Height from Deck	660 mm
Turning Radius	1670 mm
Backrest Height	460 mm
minrangeKM	30 km
maxrangeKM	40 km
Max Speed	10 km/h
Front Wheel	11" Pneumatic tire
Rear Wheel	11" Pneumatic tire
Gradient	6 °
Ground Clearance	100 mm
Battery	12V/55A/H x 2pcs Ah
Motor Size	350W/1200W hp
Controller	S-Drive 120A
Charger	4Amp A
Product Weight	98 kg
Total Weight Without Battery	66 kg
Max User Weight	150 kg
