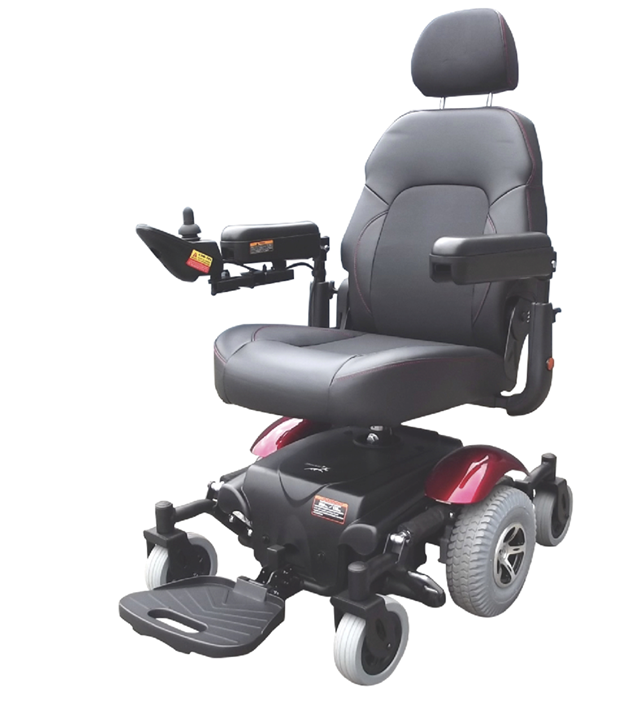

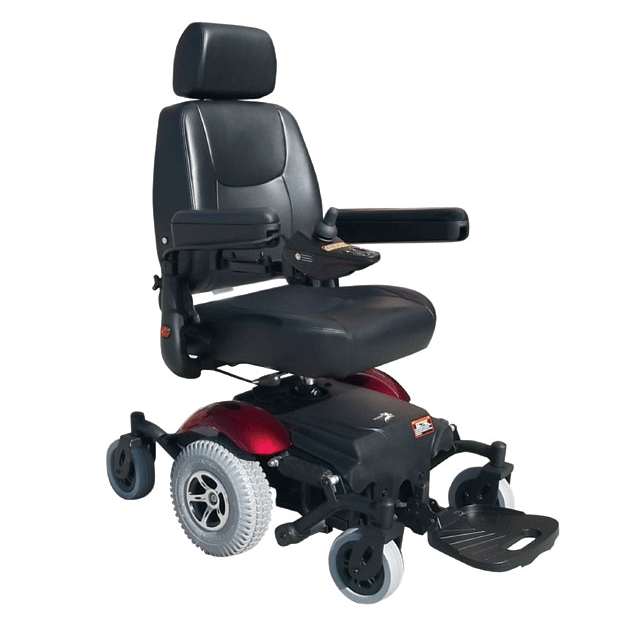

Merits Maverick 10
Merits Maverick 10
$5,290.00
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Full front and rear suspension design offers a comfortable ride.
- Low canter of gravity design delivers a smooth and stable ride.
- Swing back joystick mount is standard.
- Height and width adjustable armrest, semi reclining backrest and height adjustable seat for various needs.
Bringing you more choices more solutions!
Additional information
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Full front and rear suspension design offers a comfortable ride.
- Low canter of gravity design delivers a smooth and stable ride.
- Swing back joystick mount is standard.
- Height and width adjustable armrest, semi reclining backrest and height adjustable seat for various needs.
Specifications
| Overall Length | 860 mm |
| Overall Width | 610 mm |
| Min Overall Height | 1230 mm |
| Max Overall Height | 1230 mm |
| Min Seat Width | 460 mm |
| Max Seat Width | 460 mm |
| Min Seat Depth | 460 mm |
| Max Seat Depth | 460 mm |
| Min Floor To Seat Height | 430 mm |
| Max Floor To Seat Height | 530 mm |
| Min Seat Height from Deck | 510 mm |
| Max Seat Height from Deck | 560 mm |
| Turning Radius | 500 mm |
| Backrest Height | 500 mm |
| Castor Diameter | 152 mm |
| Range | 28 km |
| Max Speed | 8 km/h |
| Gradient | 8 ° |
| Ground Clearance | 50 mm |
| Battery | 12v/34ah x 2pcs Ah |
| Motor Size | 160W/520W hp |
| Controller | PG VR2 40A |
| Charger | 5Amp A |
| Product Weight | 100 kg |
| Total Weight Without Battery | 76 kg |
| Max User Weight | 136 kg |
