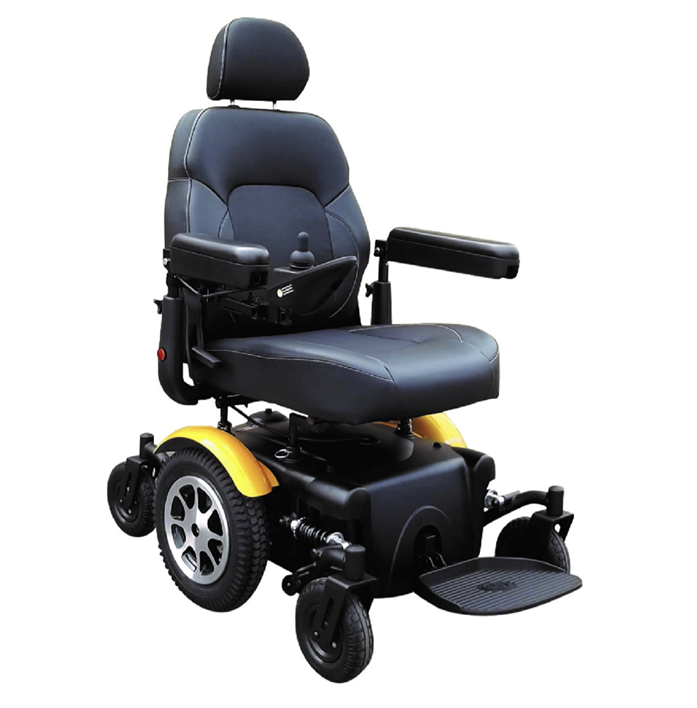

Merits Maverick 12
Merits Maverick 12
$6,290.00
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain .
- Patented obstacle climbing suspension that works.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Height and width adjustable armrests on the new contoured seat.
- Height adjustable four post seat with reclining back rest.
- Swing back joystick mount is standard.
- Other options available are electric seat lift, rear attendant controls, optional seating & leg rests.
Additional information
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain .
- Patented obstacle climbing suspension that works.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Height and width adjustable armrests on the new contoured seat.
- Height adjustable four post seat with reclining back rest.
- Swing back joystick mount is standard.
- Other options available are electric seat lift, rear attendant controls, optional seating & leg rests.
Specifications
Overall Length | 900 mm |
Overall Width | 690 mm |
Min Overall Height | 1270 mm |
Max Overall Height | 1270 mm |
Min Seat Width | 510 mm |
Max Seat Width | 510 mm |
Min Seat Depth | 460 mm |
Max Seat Depth | 460 mm |
Min Floor To Seat Height | 350 mm |
Max Floor To Seat Height | 450 mm |
Min Seat Height from Deck | 530 mm |
Max Seat Height from Deck | 580 mm |
Turning Radius | 530 mm |
Backrest Height | 510 mm |
Castor Diameter | 152 mm |
Range | 32 km |
Max Speed | 8 km/h |
Gradient | 8 ° |
Ground Clearance | 56 mm |
Battery | 12v/55ah x 2pcs Ah |
Motor Size | 200W/575W hp |
Controller | PG VR2 50A |
Charger | 5Amp A |
Product Weight | 106 kg |
Total Weight Without Battery | 76 kg |
Max User Weight | 205 kg |
