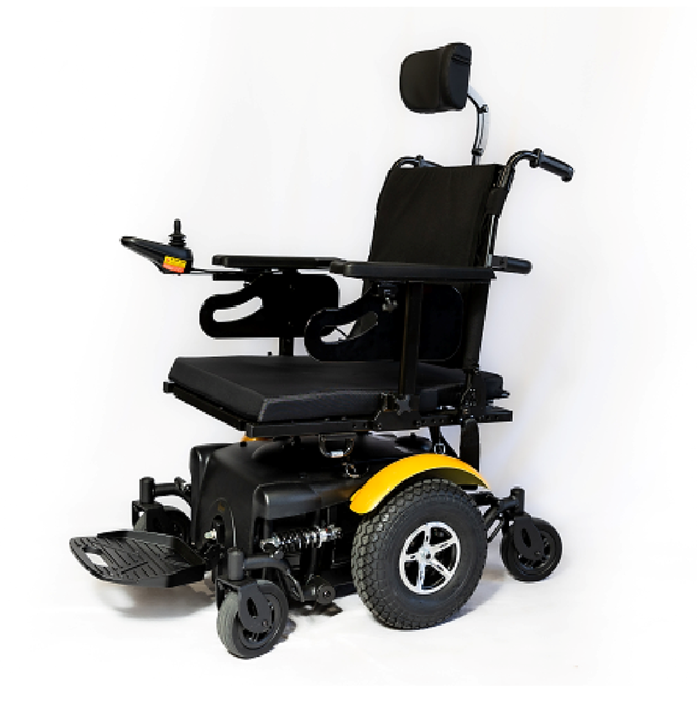

Merits Maverick 12 Rehab

Merits Maverick 12 Rehab

$6,549.00

Description

  • Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and the superior adjustable suspension design delivers a smooth and stable ride both indoors and outdoors, even over tough terrain.
  • Transit Occupied Certificate.
  • Patented obstacle climbing suspension that works.
  • Dual in-line motors enhanced efficiency torque, range and performance.
  • Height and width adjustable armrests on the new contoured seat.
  • Height adjustable four post seat with width and depth adjustment (R601).
  • Crash tested tie down points.
  • Other options available are head rest, rear attendant controls, optional leg rests rests .

Additional information

Description

  • Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and the superior adjustable suspension design delivers a smooth and stable ride both indoors and outdoors, even over tough terrain.
  • Transit Occupied Certificate.
  • Patented obstacle climbing suspension that works.
  • Dual in-line motors enhanced efficiency torque, range and performance.
  • Height and width adjustable armrests on the new contoured seat.
  • Height adjustable four post seat with width and depth adjustment (R601).
  • Crash tested tie down points.
  • Other options available are head rest, rear attendant controls, optional leg rests rests .

Specifications

Overall Length 900 mm
Overall Width 690 mm
Min Overall Height 1000 mm
Max Overall Height 1000 mm
Min Seat Width 460 mm
Max Seat Width 560 mm
Min Seat Depth 460 mm
Max Seat Depth 560 mm
Min Floor To Seat Height 320 mm
Max Floor To Seat Height 370 mm
Min Seat Height from Deck 440 mm
Max Seat Height from Deck 490 mm
Turning Radius 530 mm
Backrest Height 460 mm
Castor Diameter 152 mm
Range 32 km
Max Speed 8 km/h
Gradient 8 °
Ground Clearance 56 mm
Battery 12v/55ah x 2pcs Ah
Motor Size 200W/575W hp
Controller PG VR2 50A
Charger 5Amp A
Product Weight 111 kg
Total Weight Without Battery 78 kg
Max User Weight 205 kg
