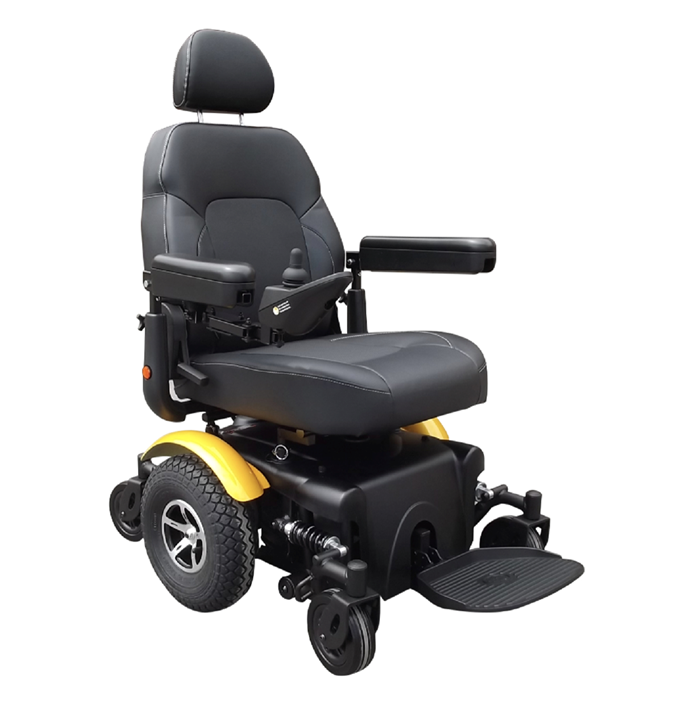

Merits Maverick 14
Merits Maverick 14
$6,559.00
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
- Patented obstacle climbing suspension that works.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Height and width adjustable armrests on the new contoured seat .
- Height adjustable four post seat with reclining back rest.
- Swing back joystick mount is standard.
Bringing you more choices more solutions!
Additional information
Description
- Mid-wheel drive design delivers outstanding manoeuvrability in tight, compact spaces and a smooth and stable ride both indoors and outdoors even over rough terrain.
- Patented obstacle climbing suspension that works.
- Dual in-line motors enhanced efficiency torque, range and performance.
- Height and width adjustable armrests on the new contoured seat .
- Height adjustable four post seat with reclining back rest.
- Swing back joystick mount is standard.
Specifications
| Overall Length | 1010 mm |
| Overall Width | 660 mm |
| Min Overall Height | 1270 mm |
| Max Overall Height | 1270 mm |
| Min Seat Width | 510 mm |
| Max Seat Width | 510 mm |
| Min Seat Depth | 460 mm |
| Max Seat Depth | 460 mm |
| Min Floor To Seat Height | 370 mm |
| Max Floor To Seat Height | 470 mm |
| Min Seat Height from Deck | 550 mm |
| Max Seat Height from Deck | 600 mm |
| Turning Radius | 530 mm |
| Backrest Height | 510 mm |
| Castor Diameter | 203 mm |
| Range | 40 km |
| Max Speed | 7 km/h |
| Gradient | 8 ° |
| Ground Clearance | 80 mm |
| Battery | 12v/55ah x 2pcs Ah |
| Motor Size | 200W/575W hp |
| Controller | PG VR2 50A |
| Charger | 5Amp A |
| Product Weight | 115 kg |
| Total Weight Without Battery | 81 kg |
| Max User Weight | 205 kg |
