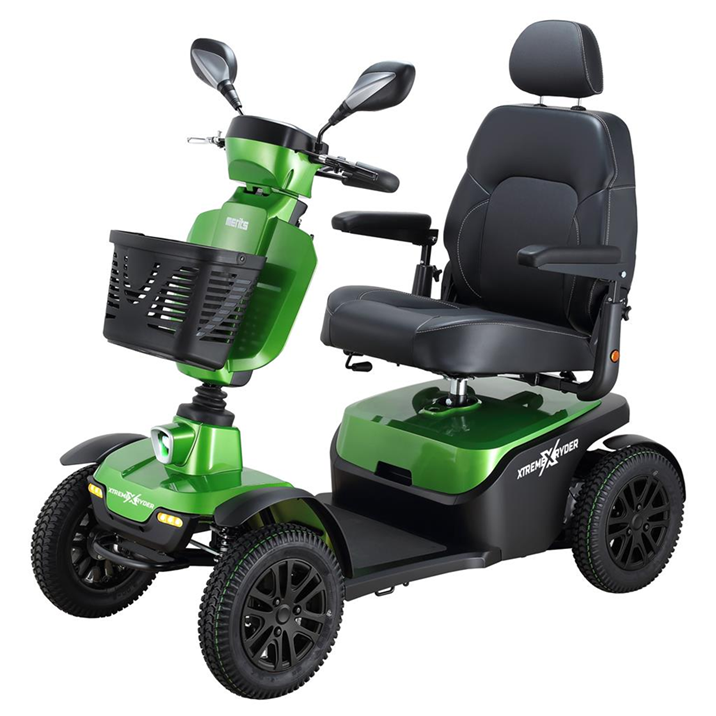

Merits Xtreme Ryder

The Xtreme Ryder is designed to help you explore with ease and reliability for everyday adventures. Powerful 24-volt DC motor delivering 1750W. Full front and rear suspension system provides superior comfort and safety. Regenerative electromagnetic brakes. Sturdy 14" pneumatic

The Xtreme Ryder is designed to help you explore with ease and reliability for everyday adventures.

• Powerful 24-volt DC motor delivering 1750W .
• Full front and rear suspension system provides superior comfort and safety.
• Regenerative electromagnetic brakes.
• Sturdy 14" pneumatic tyres.
• Adjustable seat height and position.
• RFID sensor lock for keyless ignition.
• Full LED display.
• Available in green and red.

Specifications

• Model code S849
• Seat Width 51cm
• Seat Depth 46cm
• Seat Height from Ground 70.5-75.6cm
• Seat Height from Deck 52-56.9cm
• Backrest Height 51cm
• Wheelbase 107cm
• Overall Length 148cm
• Overall Width 65cm
• Overall Height 136cm
• Front Wheel 14” Pneumatic Tyre
• Rear Wheel 14” Pneumatic Tyre
• Brake Intelligent regenerative
• electromagnetic brakes
• Battery 75AH x 2pcs (Standard)
• 100AH x 2pcs (Optional)
• Controller Dynamic Rhino 2 160A
• Motor DC 24v 400W (Rating)/1750W (Max)
• Charger 8A Off Board
• Ground Clearance 11.2cm
• Range Up to 60km*
• Max Speed 10km/h
• Gradient 100
• Weight Capacity Up to 182kg
